Components in rubber,
silicone and polyurea

This product category contains various types of parts made from rubber, silicone and polyurethane which, when assembled with other materials such as metal, carbon fibre and plastics create specific components.
With many types of available mixtures, these products are used in virtually every sector and can be supplied with certificates of origin
Silicone and rubber moulded and co-moulded (MMIM) parts

The hot moulding production process allows us to create parts using various rubber and silicone rubber mixtures, which are available in various colours and hardnesses.
The product types we are able to create range from simple shapes such as plates, rings and gaskets, to more complex forms such as bellows, vibration dampers and other parts from drawings used in the automotive and machinery sectors.

Injection moulding, combined with the use of specific primers, allows co-moulding (MMIM – multi-material injection moulding) of the required mixture onto rigid substrates made from different materials such as iron, steel, stainless steel, aluminium, carbon fibre etc.

Through the use of a CNC milling machine, we are able to produce dedicated moulds internally in order to prototype the required geometry very quickly.

The most commonly used mixtures for producing components are: NBR, EPDM, NEOPRENE, SILICONE, VITON, FDA FOOD-GRADE RUBBER, OIL-RESISTANT RUBBER, FDA SILICONE RUBBERS.

Rubber and polyurea wheels and rollers

The above-mentioned mixtures can also be injection moulded onto rollers or wheels before then being ground to achieve a perfect surface; the available hardnesses range from around 30 shore to 70 shore.

Another innovative technology which is used to create this type of product is 3D printing, where a material known as polyurea, which has characteristics very similar to polyurethane, is applied to a metal or plastic core, before being turned or ground to drawing specifications.

The available hardnesses are 70 and 95 shore, and versions with FDA food-contact certificates can also be supplied.

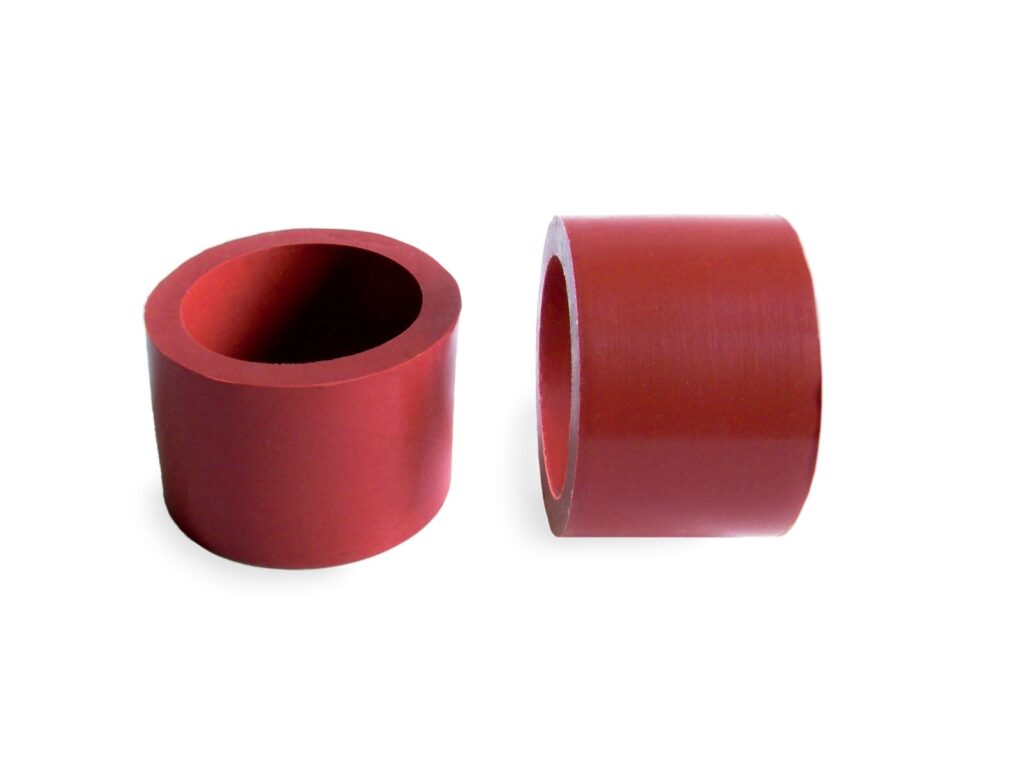

1 – The parts in silicone rubber are available in different colours, with hardness ranging from 30 to 65 shore

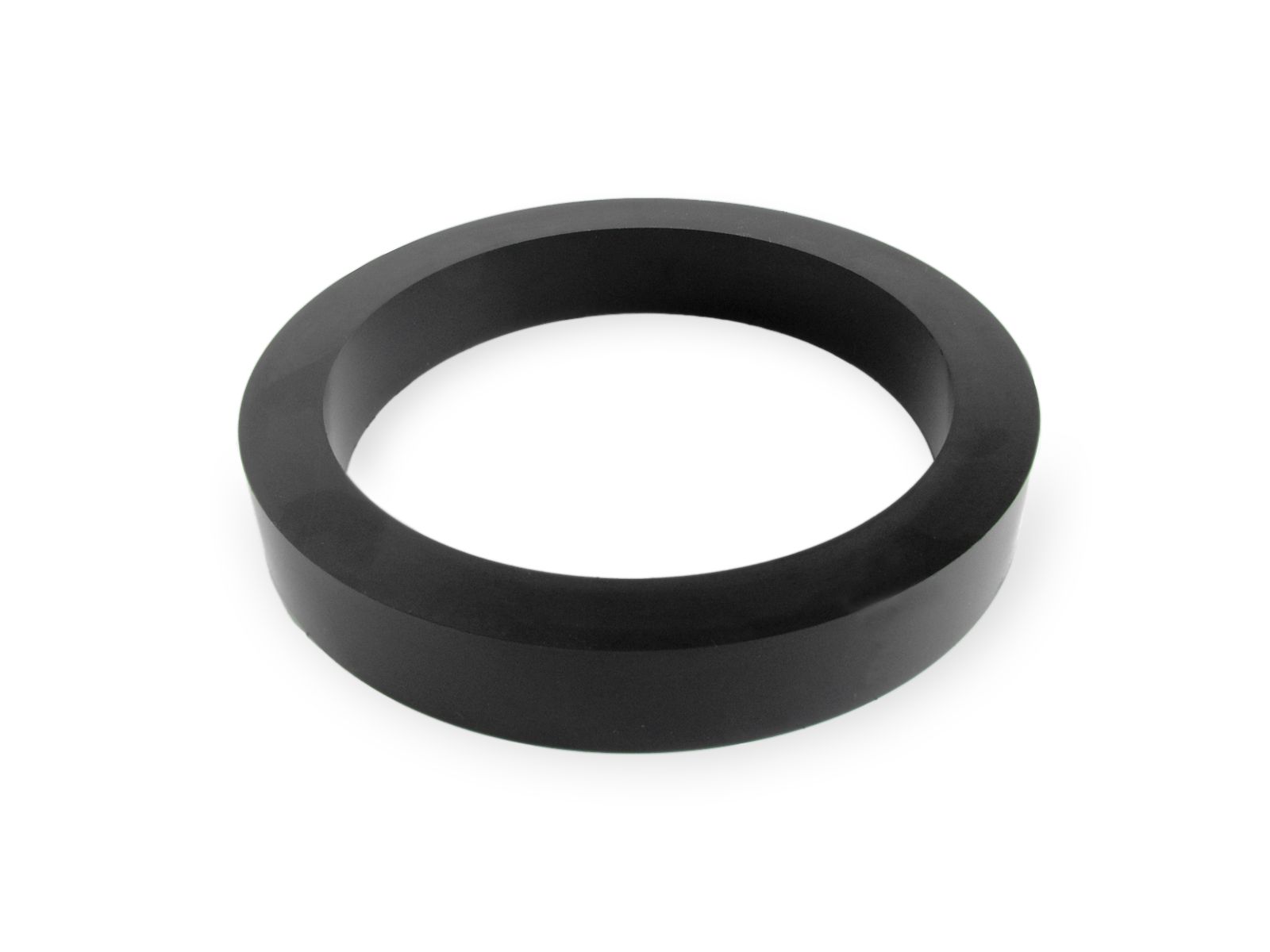

2 – Rings and gaskets can be made to any size; we have moulds of different diameters and heights in our warehouse

3 – Aluminium component with silicone rubber terminals for product picking gripper in the packaging sector

4 – Wheels with metal core, available in rubber, polyurethane and silicone of different hardnesses

5 – We can mould plates of different types with materials such as silicone, Viton, VMQ, neoprene, silicone rubber, EPDM

6 – Roller with aluminium core and polyurea coating applied via 3D printing; the surface is turned or ground

7 – Part made to drawing specification from NBR black rubber with metal core used as vibration damper

8 – Using our own milling machine we can rapidly produce moulds to obtain moulded and co-moulded components

9 – Distribution component produced through co-moulding of black high-strength rubber and stainless-steel tubing

10 – NBR boot used to protect the control levers of an operator station in the earth moving sector

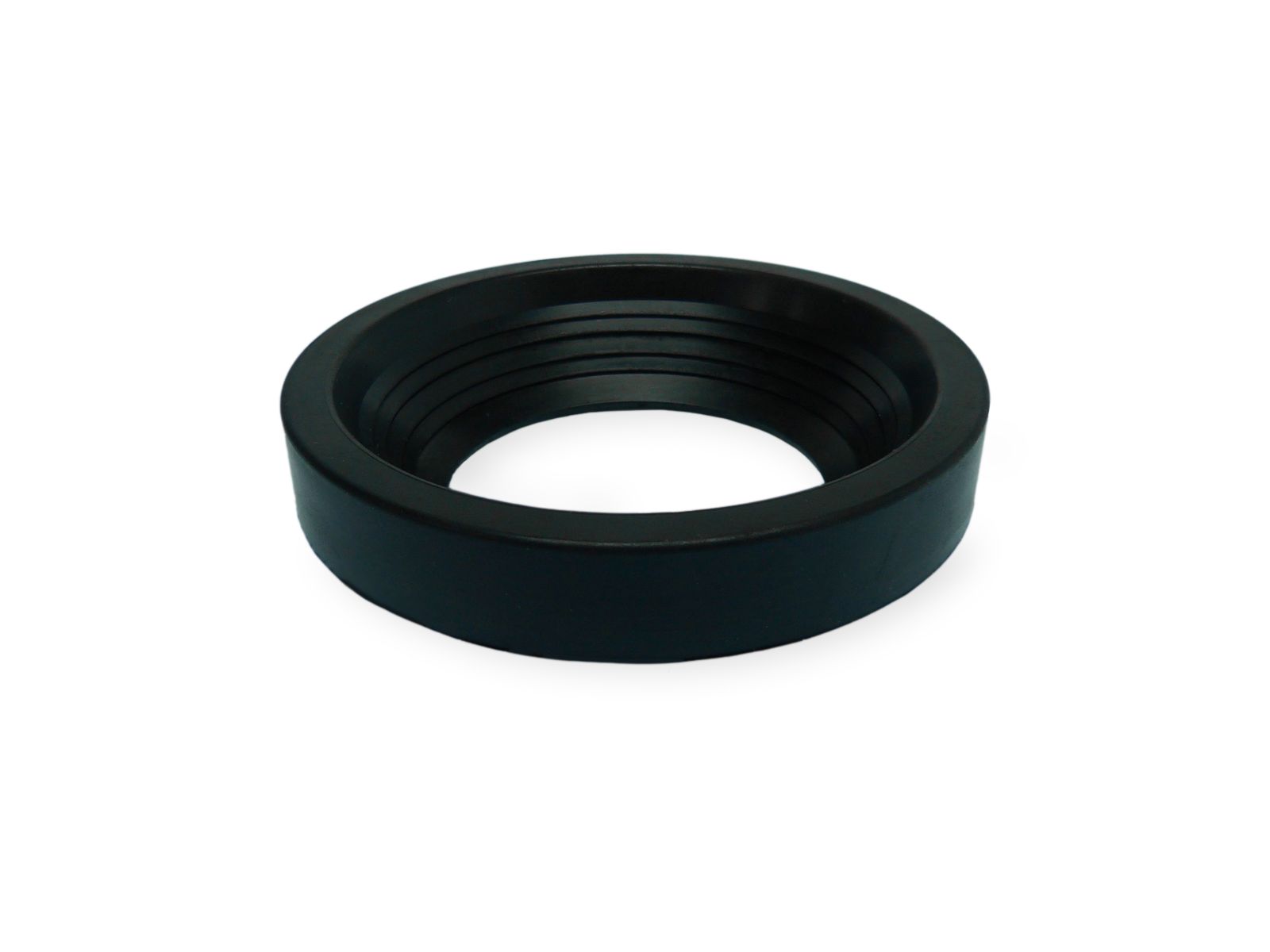

11 – Part made from oil-resistant EPDM rubber, 60 shore hardness, also available in FDA food-grade version, white

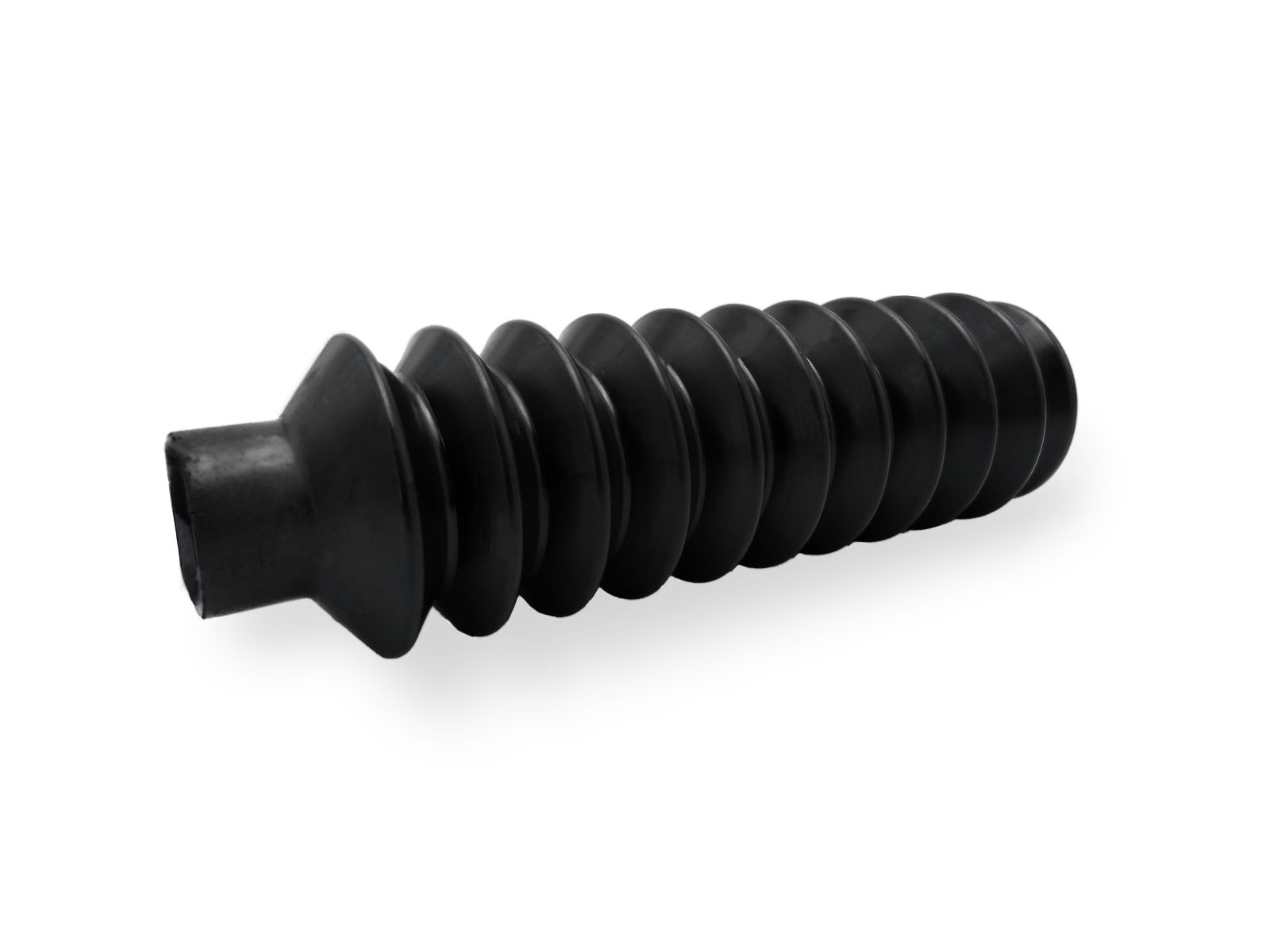

12 – NBR protective boot used on vibration damping system in the industrial automation sector

13 – Black EPDM rubber plug for closing the end of tubes in the gym equipment sector

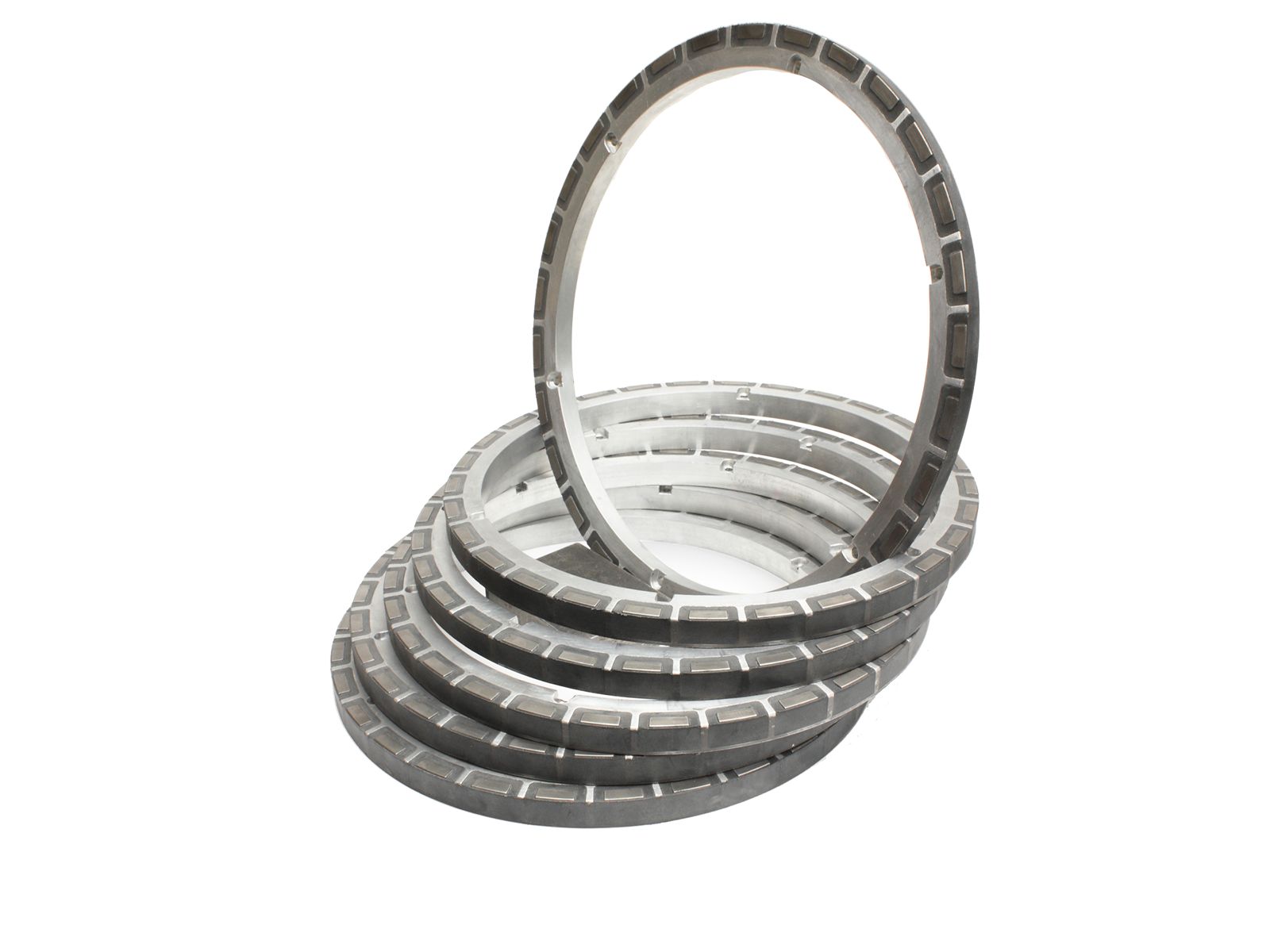

14 – Through the use of specific primers, it is possible to co-mould different types of rubber and silicone over metal or carbon fibre

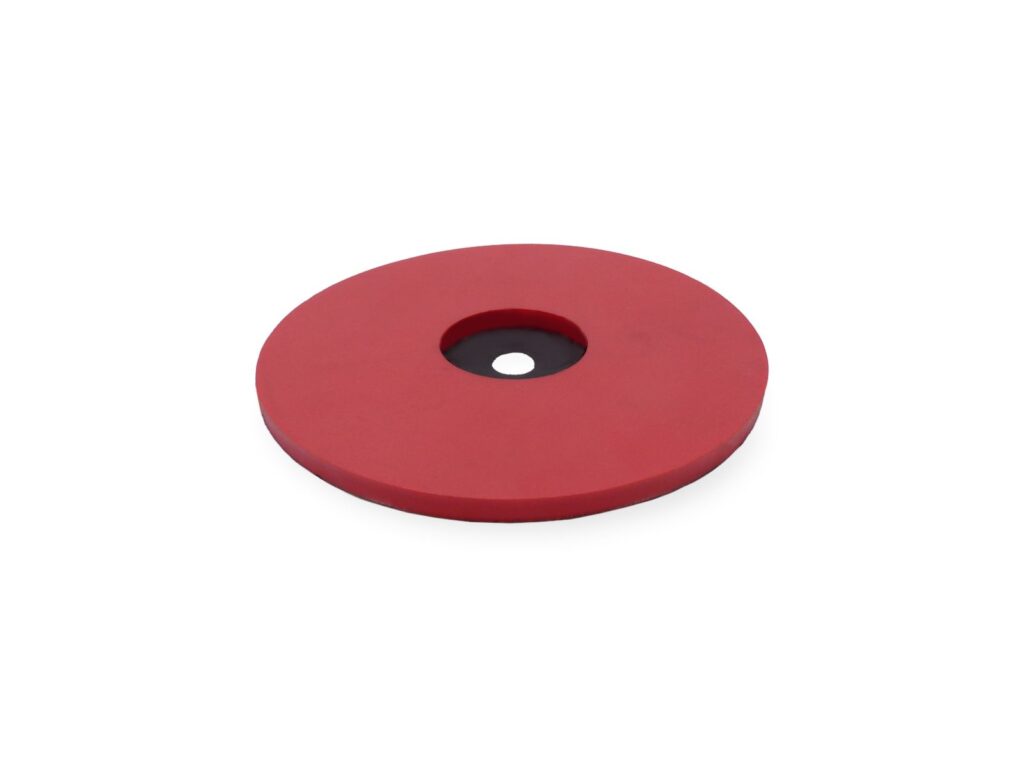

15 – Stainless-steel disc with Linatex natural rubber coating used in the bottling sector

16 – Black Delrin component covered with honeycomb rubber and used on conveyor systems
